HIGH PRESSURE CYLINDERS FOR CIVIL USE
(MARINE INDUSTRY & BREATHING APPARATUS ETC.)
|
|
|

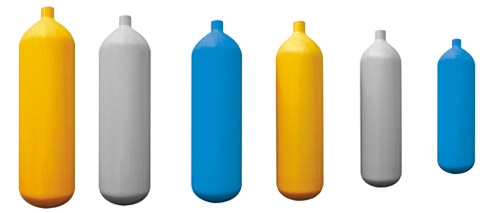

34CrMo STEEL CYLINDERS (1)
| TYPE |
2.0L |
2.0L |
3.0L |
3.0L |
5.0L |
6.0L |
7.0L |
| Out-Diameter(mm)กำ |
104 |
116 |
104 |
116 |
136 |
136 |
136 |
| Min Wall-thickness(mm) |
2.55 |
2.83 |
2.55 |
2.83 |
3.31 |
3.31 |
3.31 |
| Working
Pressure(bar) |
210 |
210 |
210 |
210 |
210 |
210 |
210 |
| Test
Pressure(bar) |
315 |
315 |
315 |
315 |
315 |
315 |
315 |
| Cylinder
Length(mm) |
366 |
286 |
467 |
390 |
471 |
547 |
623 |
| Cylinder
Weight(kg) |
2.96 |
3.10 |
3.72 |
4.10 |
6.20 |
7.04 |
7.88 |
34CrMo STEEL CYLINDERS (2)
| TYPE |
7.0L |
7.5L |
7.5L |
9.0L |
10L |
14L |
| Out-Diameter(mm)กำ |
154 |
136 |
154 |
154 |
154 |
154 |
| Min Wall-thickness(mm) |
3.74 |
3.31 |
3.74 |
3.74 |
3.74 |
3.74 |
| Working
Pressure(bar) |
210 |
210 |
210 |
210 |
210 |
210 |
| Test
Pressure(bar) |
315 |
315 |
315 |
315 |
315 |
315 |
| Cylinder
Length(mm) |
483 |
661 |
513 |
600 |
660 |
896 |
| Cylinder
Weight(kg) |
8.88 |
8.30 |
9.32 |
10.63 |
11.73 |
15.0 |
|
|
|
|
